Configure your frame system

Frames can be confusing. This guide will help you decide on a coordinate system for your workspace, and then determine how the frames of your arm and other components relate to that workspace.

Once you have configured frames for all your components, Viam will keep track of the positions and orientations as your robot moves, so you can plan motion in terms of a consistent coordinate system.

For reference information, see the frame system.

Determine the world frame

The world reference frame is the fixed coordinate system that serves as the reference point for the other frames in your robotic system.

You choose the world frame, in whatever way is convenient for your application. It generally makes sense to define the world frame’s location as a point in your space that does not move and is easy to measure from.

For example, if you are using a robot arm mounted to a table, it can be convenient to define the arm’s base frame as equal to the world frame, or you can define the world frame as one corner of the table that the arm is mounted to.

You do not explicitly configure the world frame. You define it implicitly by configuring the frame of a component relative to world.

Add a frame to your arm

1. Mount the arm in a fixed location.

2. On your arm’s configuration card, click + Add frame.

3. The card will populate with the following default values:

   {
     "orientation": {
       "type": "ov_degrees",
       "value": {
         "x": 0,
         "y": 0,
         "z": 1,
         "th": 0
       }
     },
     "parent": "world",
     "translation": {
       "x": 0,
       "y": 0,
       "z": 0
     }
   }


   This orientation vector of x=0, y=0, z=1, th=0 means the frame is aligned with the world frame, and the 0, 0, 0 translation means the arm’s origin frame is coincident with the origin of the world frame. You can think of it like this: The z-axis of the arm’s origin frame is parallel to the z-axis of the world frame, and the origin of the arm’s origin frame is in the same place as the origin of the world frame.

   If you want to define the world frame as the corner of the table, leave the default values for now, and continue to the next step so that you know which way x and y point and can edit the configuration accordingly.

4. Click Save.

   By configuring your arm’s frame like this, you have now defined the world frame as the same as the arm’s base frame.

Figure out which way the arm’s axes point

The arm’s base frame is now the world frame, but you do not know which way the x, y, and z axes of the arm frame point, unless you happen to be familiar with the arm’s kinematics file.

1. On your arm’s configuration card, click the TEST section (or use the CONTROL tab).

2. Move the arm in each direction and note which way the arm moves. For example, under the MoveToPosition section, move the arm in the positive Z direction. If it moves upwards, then you know that the z-axis of the arm frame points upwards.

3. If the directions do not match your intended world frame, you can edit the arm’s orientation field to rotate the arm frame to match your intended world frame. For example, if the arm’s x-axis points to the right, but you want it to point to the left, you can set the orientation field to "x"=0, "y"=0, "z"=1, "th"=180.

4. For your reference, mark the X, Y, and Z axes of the world frame on your workspace with tape or a marker.

Add a frame offset

If you want to define the world frame as the corner of the table, you can now edit the arm’s frame to be offset from the world frame by the distance from the table corner to the arm’s base:

1. Measure the X and Y distance from your designated table corner to the center of the arm’s base.

2. Edit the arm’s frame configuration to set the translation field accordingly. For example, if the arm’s base is 100mm in the X direction and 200mm in the Y direction from the table corner, set the translation field to "x"=100, "y"=200, "z"=0. If you chose not to align the arm’s axes with the world axes, be sure to use the X, Y, and Z directions of the world frame to set the translation field.

3. Click Save.

   The arm’s frame is now offset from the world frame by the distance from the table corner to the arm’s base.

Other ways to define the world frame

If none of your components are fixed in place, it might make sense to define the world frame as the frame of the first component you add to your robot, for example, the mobile base.

Visualize components and frames

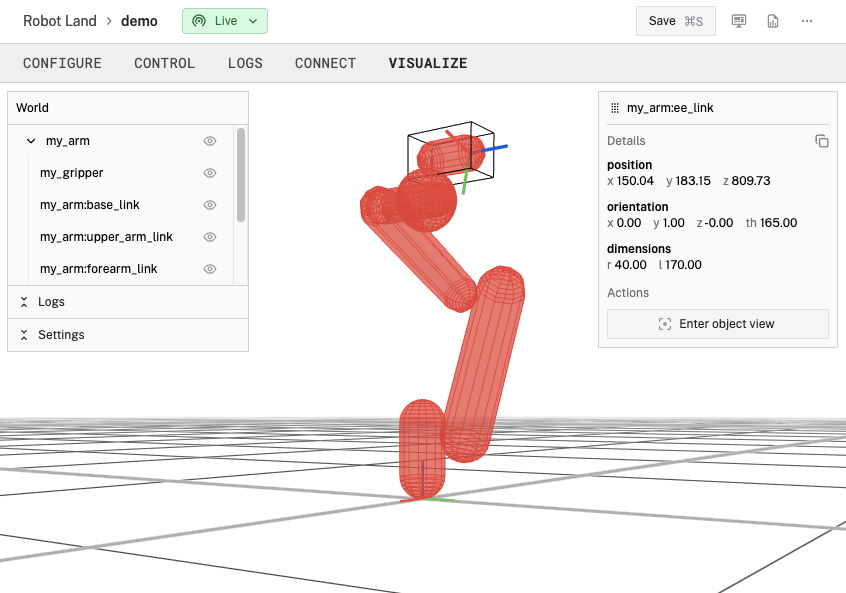

You can visualize your machine’s geometries and frames in the Viam app:

1. In Viam, navigate to your machine’s page.

2. Make sure your machine is live and connected to Viam. If your machine is not live, the visualization will not display.

3. Select the VISUALIZE tab.



4. Scroll to zoom, click and drag to tilt, and right-click and drag to pan.

5. Use the tree menu or click on the visualization to select a component, link, or other object to display its position, orientation, and dimensions.

6. You can go to the CONTROL tab, move your components, and then return to the VISUALIZE tab to see the updated visualization.
